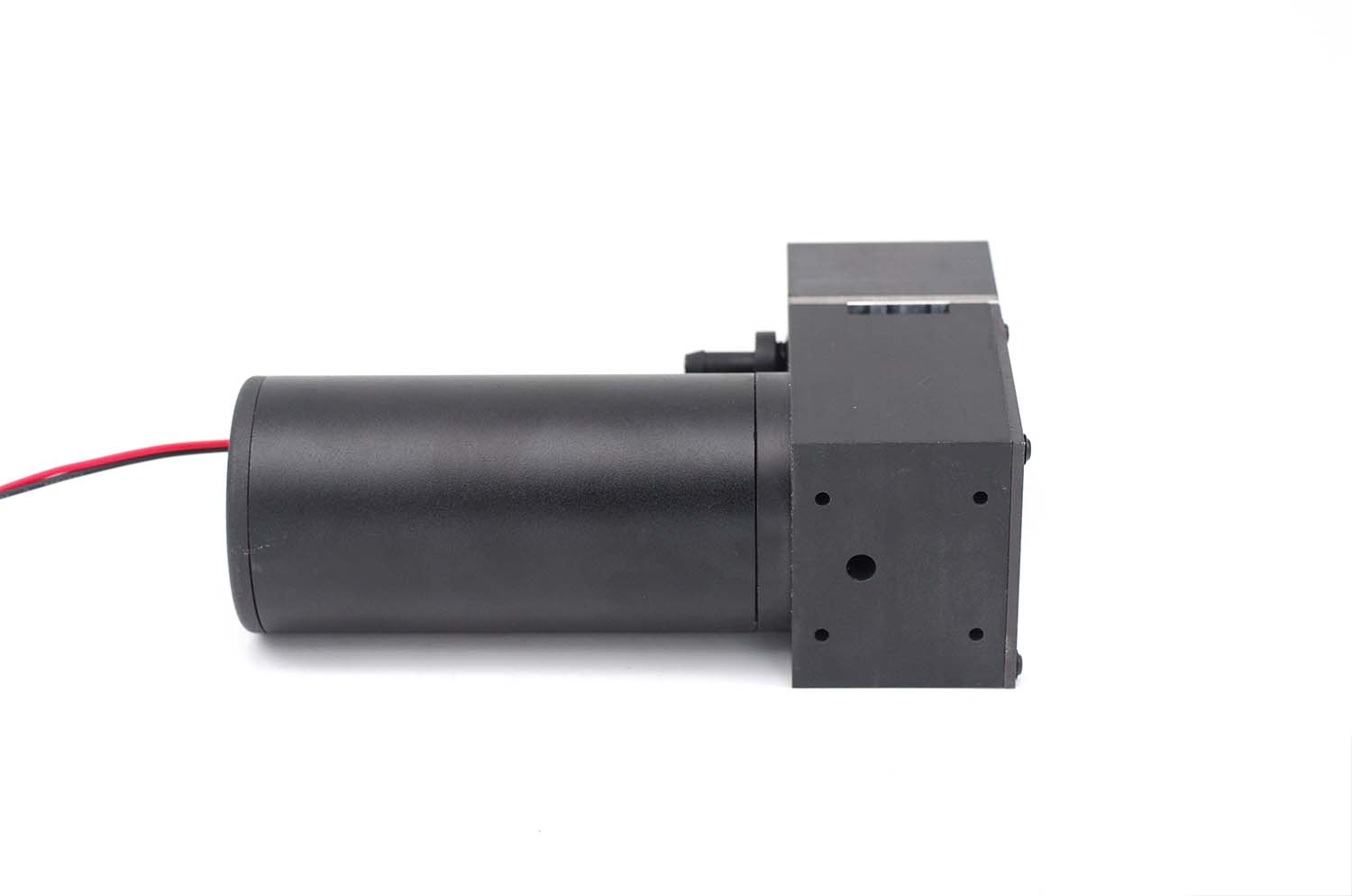

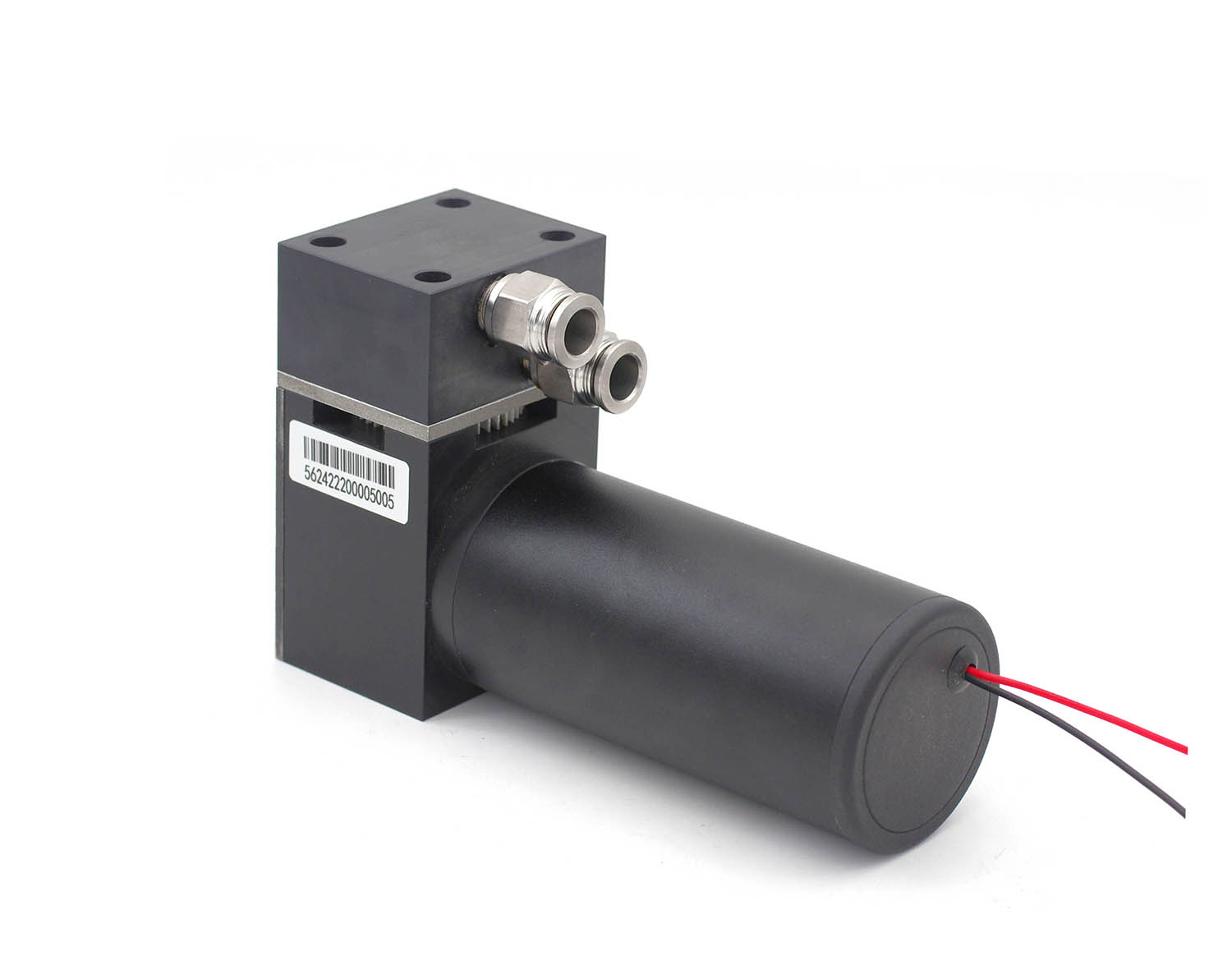

D16 is a swing piston gas pumps pump, it is suitable for compression, transfer and evacuation. This kind of micro piston pump run 100% oil-free, can operate in any position. Swing piston pumps are compact devices for generating higher pressure and vacuum  than diaphragm pumps with the same dimensions. The D16 piston pump has an output pressure of up to 520 kPa and a maximum vacuum of -80 kPa, with modular pneumatic connectors for easy integration into various pneumatic systems.

Contact us for the latest product information and technical support!

Overall Descriptions

D16 is a swing piston gas pumps pump, it is suitable for compression, transfer and evacuation. This kind of micro piston pump run 100% oil-free, can operate in any position. Swing piston pumps are compact devices for generating higher pressure and vacuum  than diaphragm pumps with the same dimensions. The D16 piston pump has an output pressure of up to 520 kPa and a maximum vacuum of -80 kPa, with modular pneumatic connectors for easy integration into various pneumatic systems.



High Pressure Piston Pump with Compact Size

This product has an overall size of about 133*47*83mm. It has a very compact size considering the pressure it can put out. It can be installed on the back panel of the device through flexible mounting feet. The installation direction will not affect the work of this type of pump, so it can provide very flexible installation options.



Special Brushed DC Motor with Interference Suppression Circuit

This series of pumps are equipped with an interference suppression circuit, which can effectively suppress the conduction interference and electromagnetic radiation caused by the operation of the BDC motor. It has good electromagnetic compatibility and can be used in occasions requiring low electromagnetic interference.



Excellent Gas Tightness

The specially designed double sealing structure can ensure the good air tightness of the product. According to user requirements, the air tightness can be specially tested and a corresponding report can be issued. Good airtightness makes it can be used to transmit high-value or hazardous gases. It can also be used in occasions where precise analysis of gas composition is required.



Modular Pneumatic Connectors

This series of pumps has a modular connector design. The interface can also be matched with PC6 or R1/8 reinforced nylon hose connector.

Default PC8 stainless steel push-in connector are used with 8mm outer diameter hard pipes;it also can be configured with  PC6 stainless steel push-in connector for 6mm outer diameter hard pipes and reinforced nylon hose connector for 4*8mm silicone hose and R1/8 internal thread for more types of connections. The user can select the corresponding pneumatic connectors when ordering according to the pipeline situation.

Continuous Oil-less Operation

Industrial grade high-reliability design, it has good heat dissipation performance and can run continuously for 24 hours without downtime. It is a high pressure oil-less operation pump with industrial grade reliability, maintenance-free during the design life.



Restart with Maximum Load

This series pump can restart stably and reliably under nominal maximum negative pressure or maximum positive pressure, and has good performance of re-starting with load.

Swing Micro Piston Pump with PTFE Piston

PTFE is a self-lubricating material, it can reduce friction by forming a transfer film on the friction surface, so it has a long working life. D16 micro piston compressors and vacuum pumps are the best choice for medical, food&beverage, automotive or environmental applications that require long life and high performance. High-pressure swing piston pumps and compressors are often selected by the medical market for their high quality and reliability.

Technical Infomation

D16 PERFORMANCE DATA

Model

D16M

Material Option

Piston:PTFE

Valves:FKM

Pump Head: Aluminum

Cylinder: Aluminum

Voltage(V DC)

24

Max. Load Current
(mA))

≤780

Max. Average Flow rate(L/min)

≥2.8

Max. Peak Flow rate
(L/min)

≥5.0

Max. Vacuum (-kPa)

≥80

Max. Pressure(kPa)

≥520

Note: The above parameters are measured under the rated voltage 24V DC, the input voltage is required to be 12 ~ 24V, and the change of the working voltage will affect the parameters.



D16 CONFIGRATION OPTIONS

Material Options

Pump Head

Aluminum

Piston/Cylinder

PTFE/Aluminum

Valves

FKM

Motor

BDC

Connector Options


Default PC8 push-in quick connector/ PA hose connector/ PP hose connector/ Stainless steel hose connector/ PC6 push-in quick connector/ Rc1/8 inside thread

D16 RELIABILITY DATA

Models

D16M

Fully Loaded Lifetime(hrs)

1000

Unloaded Lifetime(hrs)

2000

Motor Lifetime(hrs)

5000

Test conditions

In a clean and non-corrosive laboratory, working under rated voltage, the pump is fully loaded (the outlet pressure 400kPa, the inlet is directly connected to the atmosphere) or unloaded (the inlet and outlet are directly connected to the atmosphere), and runs continuously around the clock; ambient temperature: 5℃~33 ℃, relative humidity: 50%-85%, fluctuates with the climate.

Working Condition

Operating temperature

Permissible ambient temperature is 0℃~50℃, it is not suitable to be exposed to the sun, and it should work in a clean and ventilated environment
Customize option for -30℃-0℃ low ambient temperature

Medium

Permissible temperature of the medium is 5℃~50℃, the transferring gas is allowed to be rich in water vapor, but cannot contain solid particles

Wetted materials

PPS,PTFE, FKM, Aluminum and PPS

tolerance to alcohol, acid, alkali, etc. (except strong acid, concentrated acid, lipids, benzene, gasoline, etc.)



Applications

  • Portable Oxygen Concentrator
  • Medical equipment
  • Analytical instruments
  • Environmental online monitoring
  • Disinfectant Sprayers
  • Business Machines
  • Vacuum generating
  • Lab Automation


Downloads

D16 Micro Piston Pump Compressor – Hilintec Micro Pumps

D16 is micro piston pump for vacuum and compressor. This model is a high pressure oil-less swing piston pump with high pressure and high vacuum

Product SKU: D16M

Product Brand: Hilintec

Product Currency: USD

Product In-Stock: InStock
