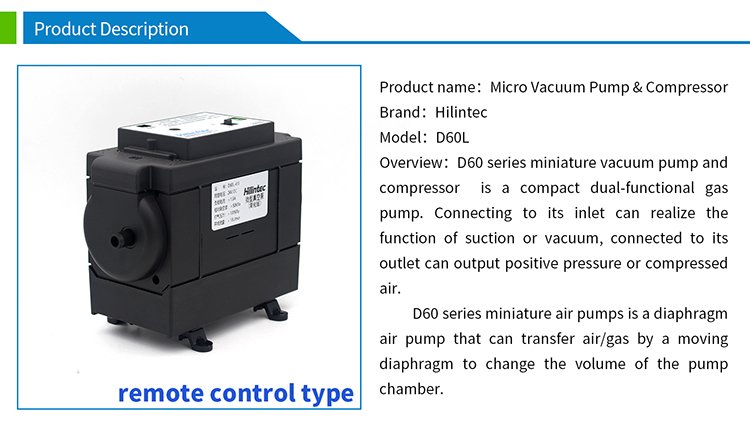

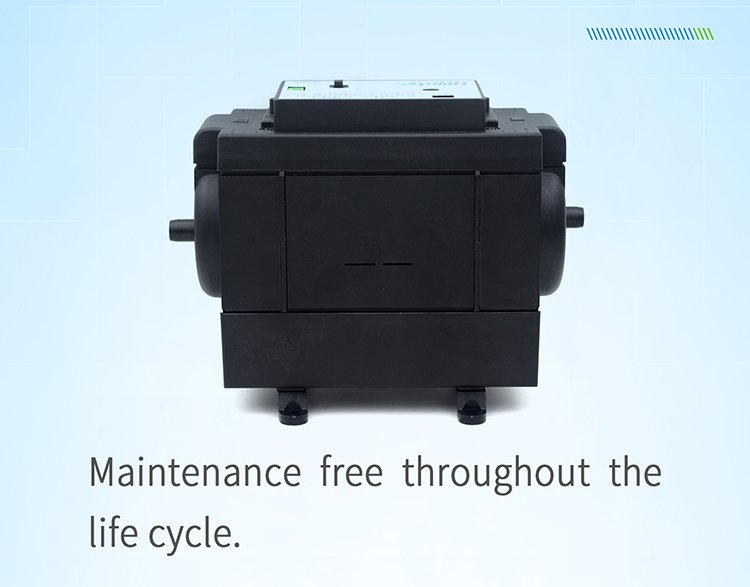

D60 Series Wired Control Micro Diaphragm Vacuum Pump
The D60 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
Especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in gas discharge. The pump can be controlled by touch or remote control, with high reliability and a peak flow rate of 26L/min.

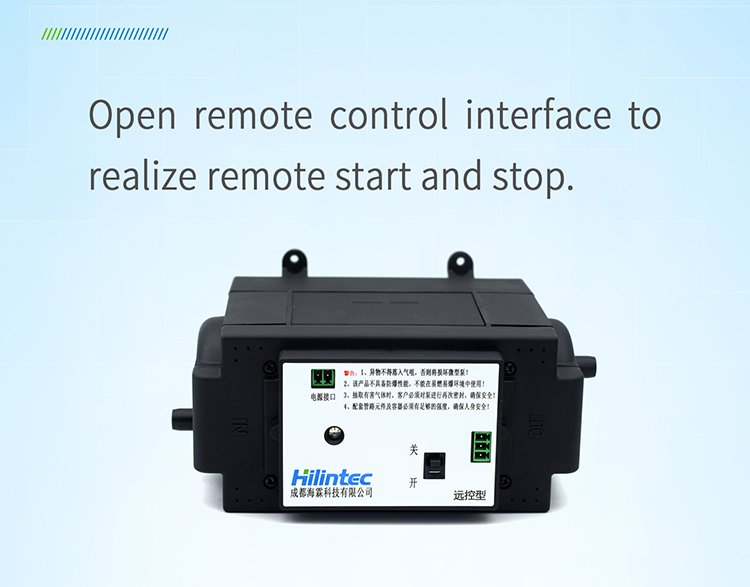

In addition to basic functions, this model has a remote control interface, which can realize remote control start and stop.
Especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in gas discharge. The pump can be controlled by touch or remote control, with high reliability and a peak flow rate of 26L/min.
In addition to basic functions, this model has a remote control interface, which can realize remote control start and stop.

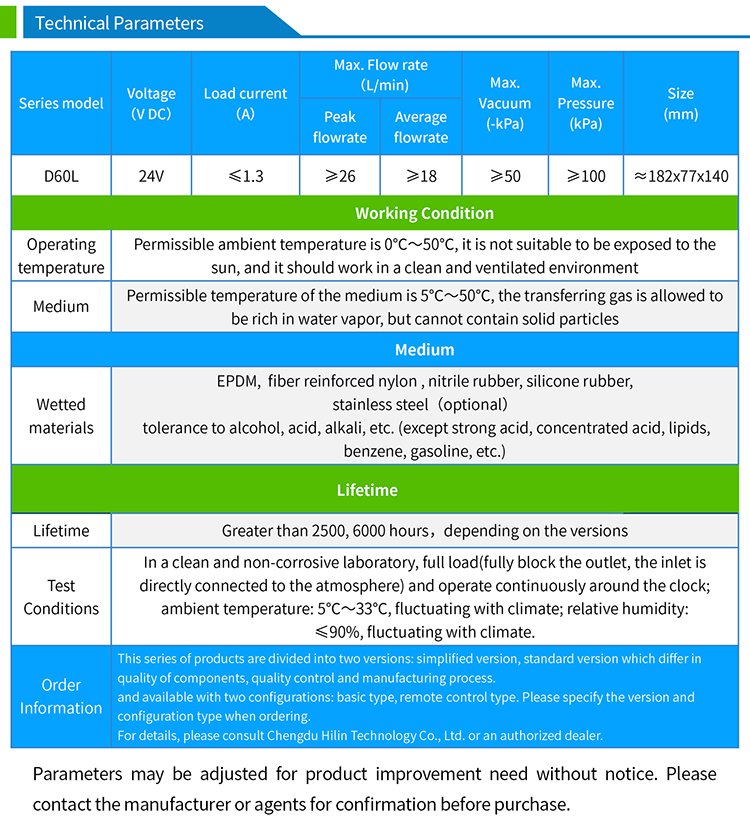

■Equipped with remote start-stop control port
■No-load average flow: 18L/min
■Relative vacuum:-50kPa
■Output pressure: 100kPa
■Overall life: Standard version>6000hrs
■Input voltage: 24V
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D60 Series Wired Control Micro Diaphragm Vacuum Pump Datasheet
