D60 Series Basic Type Diaphragm Mini Air Pump

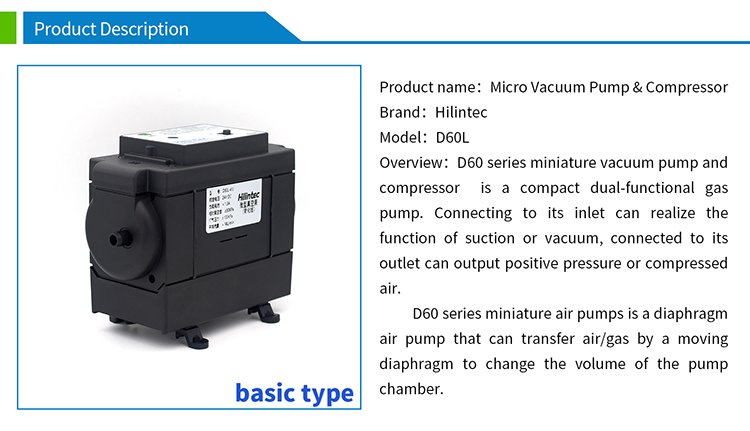

The D60 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
Especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in gas discharge. The pump can be controlled by touch or remote control, with high reliability and a peak flow rate of 26L/min.

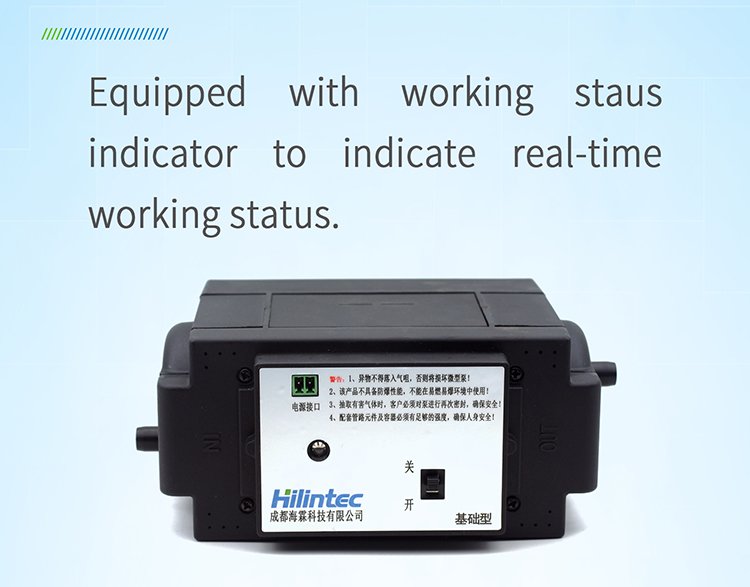

This model product is equipped with a working status indicator, which can directly reflect the running status of the pump.
Especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in gas discharge. The pump can be controlled by touch or remote control, with high reliability and a peak flow rate of 26L/min.
This model product is equipped with a working status indicator, which can directly reflect the running status of the pump.

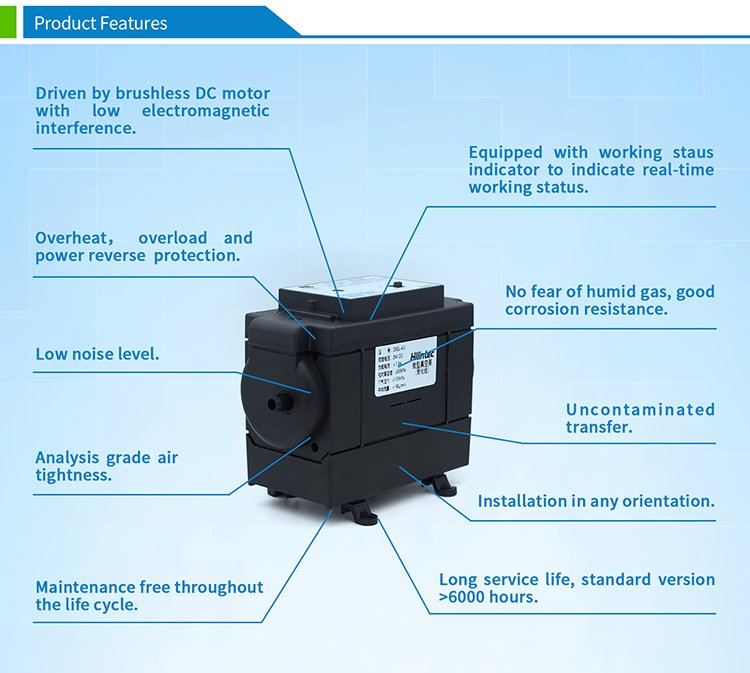

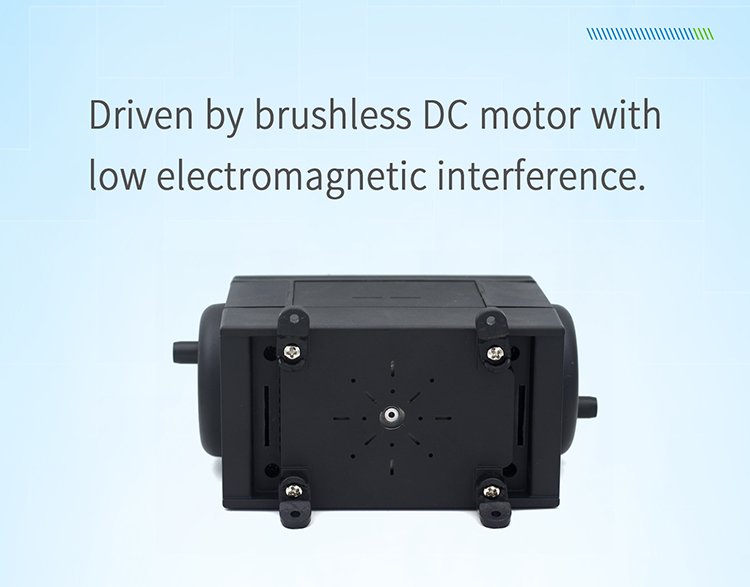

■Equipped with DC brushless motor

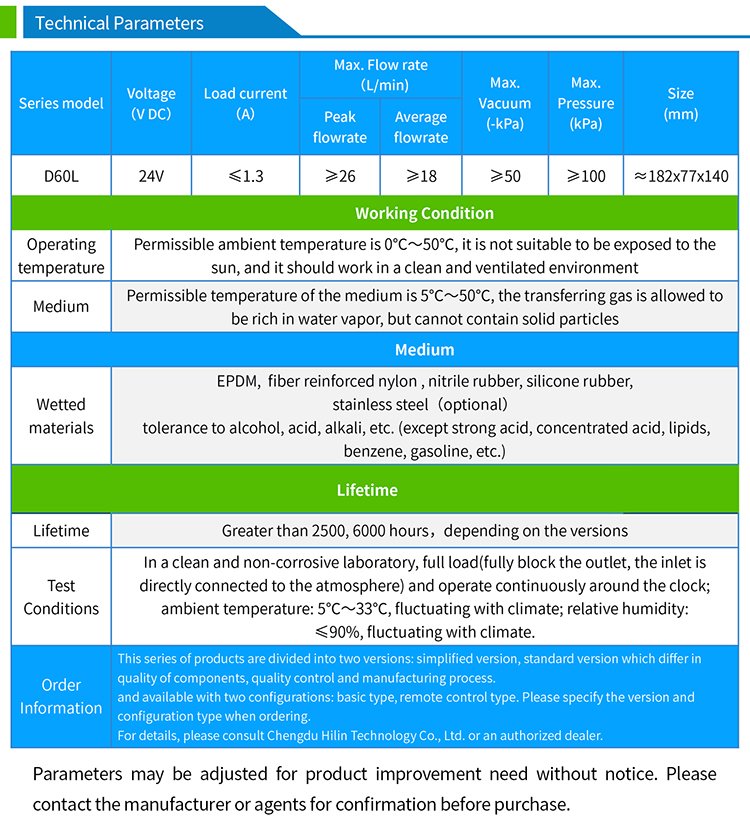

■No-load average flow: 18L/min
■Relative vacuum:-50kPa
■Output pressure: 100kPa
■Overall life: simplified version>2500hrs
■Input voltage: 24V
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D60 Series Basic Type Diaphragm Mini Air Pump Datasheet
