S36 Series Frequency Speed Control Miniature Vacuum Liquid P

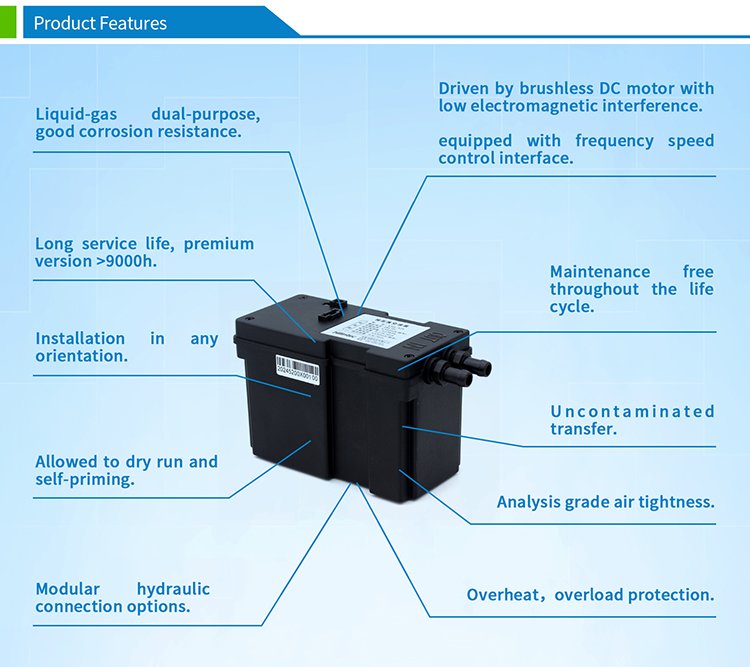

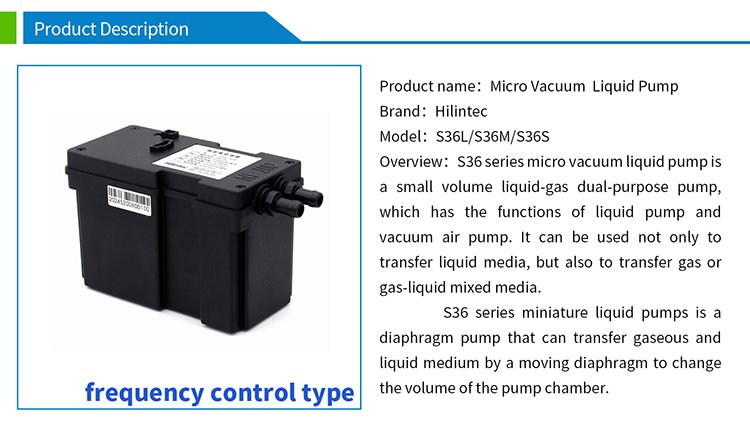

The S36 series is a small volume liquid and gas dual-purpose pump, also known as a micro vacuum pump, which has the functions of a liquid pump and a micro vacuum pump. It can be used to transport liquids and liquid-gas mixed media. It can be running dry and self-priming and does not pollute the conveyed medium.

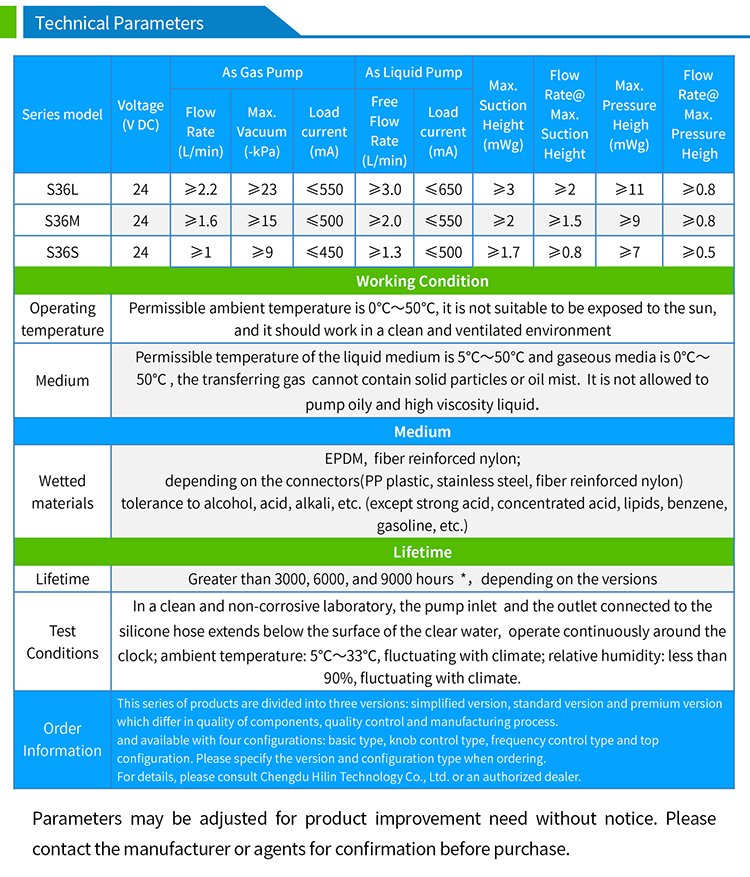

The flow rate of this type of miniature pump is 3L/min when transmitting liquid, and 2.2L/min when transmitting gas

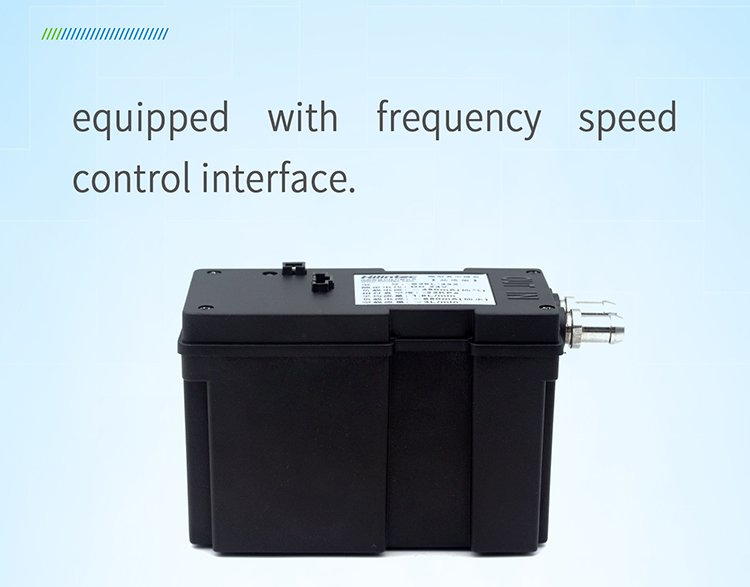

■Equipped with frequency signal speed control function
■No-load pure water flow: 3L/min
■No-load gas flow: 2.2L/min
■Relative vacuum: -23kPa
■Overall life: premium version>10000hrs (max load) 18000hrs (no-lo
