D35 Series Basic Type Diaphragm Vacuum Pump & Compressor

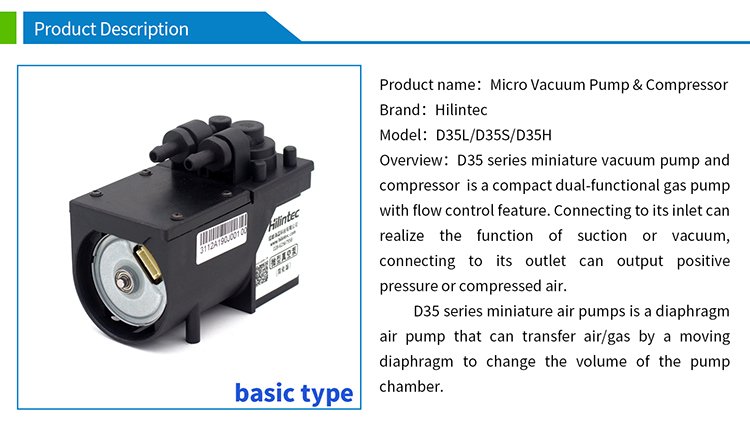

The D35 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This model is equipped with stainless steel hose connector as standard, which has good air tightness and high reliability.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This model is equipped with stainless steel hose connector as standard, which has good air tightness and high reliability.

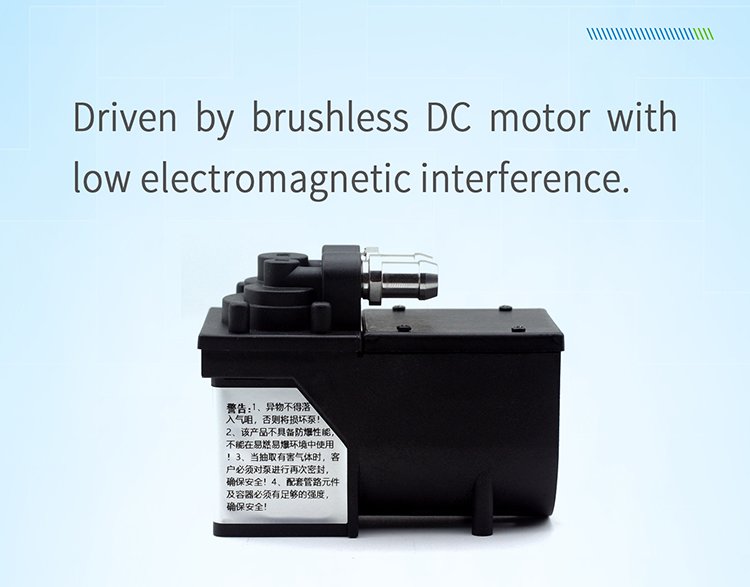

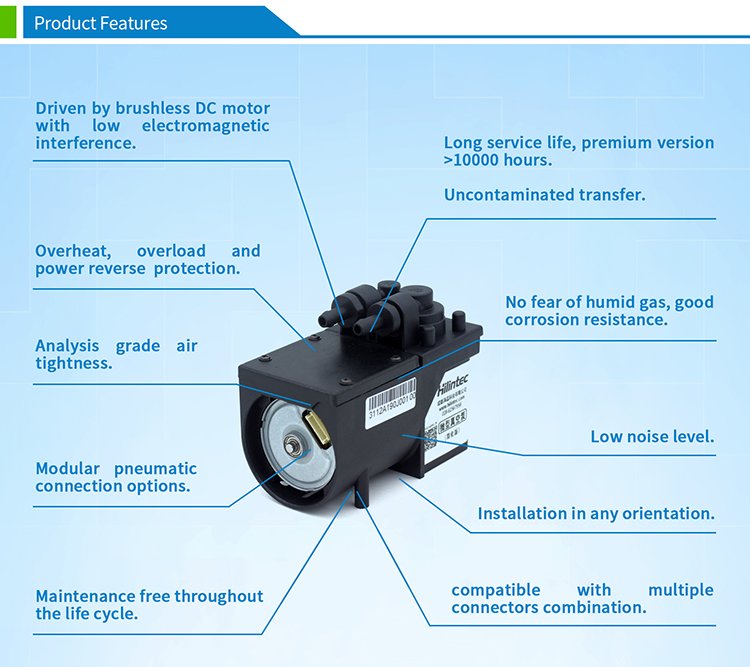

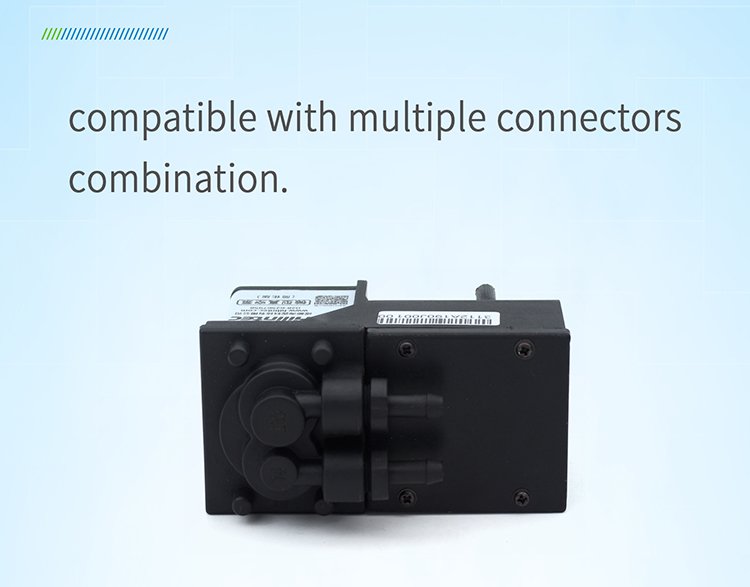

■Equipped with DC brushless motor and replaceable pneumatic connector

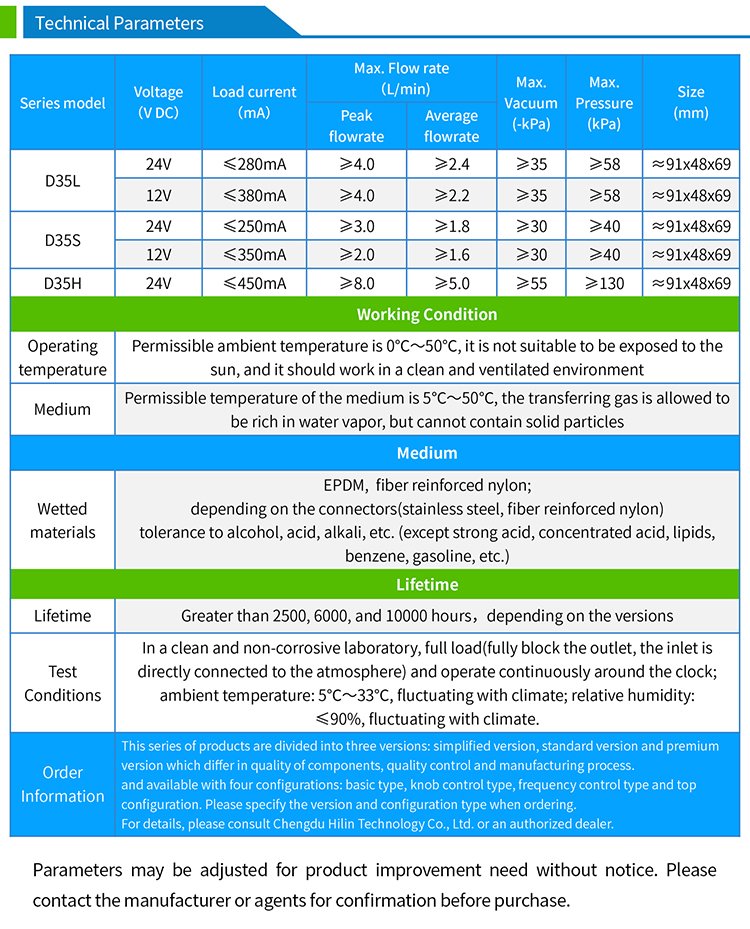

■No-load average flow: 1.6L/min~2.4L/min
■Relative vacuum: -30kPa~-35kPa
■Output pressure: 40kpa~58kPa
■Overall life: simplified version>2500
.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
basic.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D35 Series Basic Type Diaphragm Vacuum Pump & Compressor Datasheet
