D35 Frequency Speed Control Vacuum Pump& Compressor

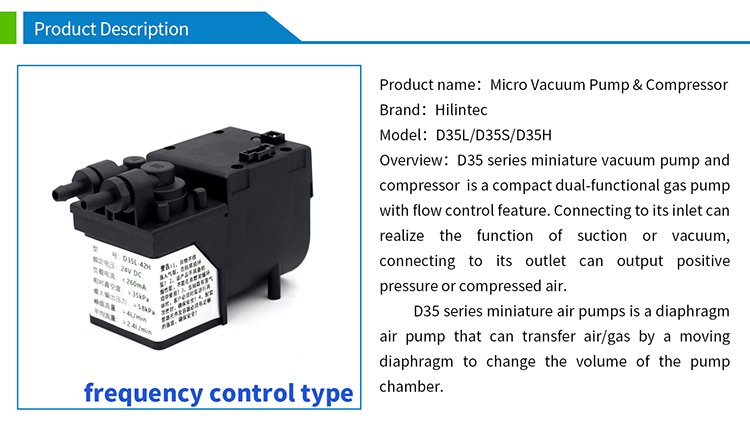

The D35 series miniature air pump is a compact vacuum pump with integrated speed and flow control function. The suction port connected to it can realize the function of pumping or vacuuming, and the exhaust port connected to it can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.

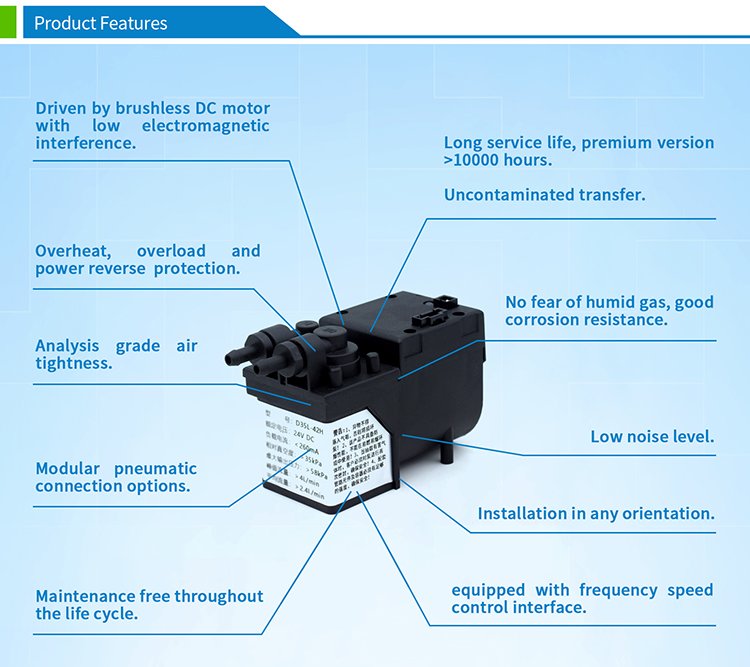

Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This model product has a frequency speed control interface, precise speed control, good air tightness and high reliability.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, test equipment, etc.
Especially suitable for: gas collection or analysis field with flow rate 2～4L/min and exhaust gas resistance. This model product has a frequency speed control interface, precise speed control, good air tightness and high reliability.

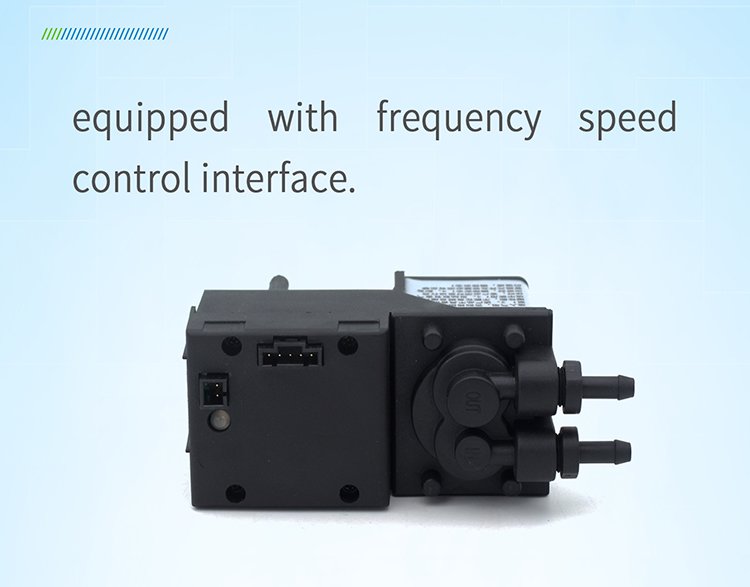

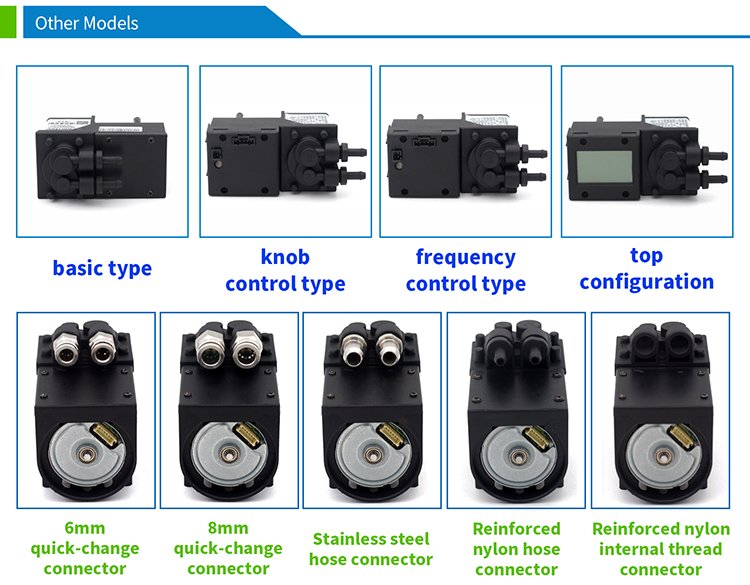

■Equipped with speed control signal control port and replaceable pneumatic connector

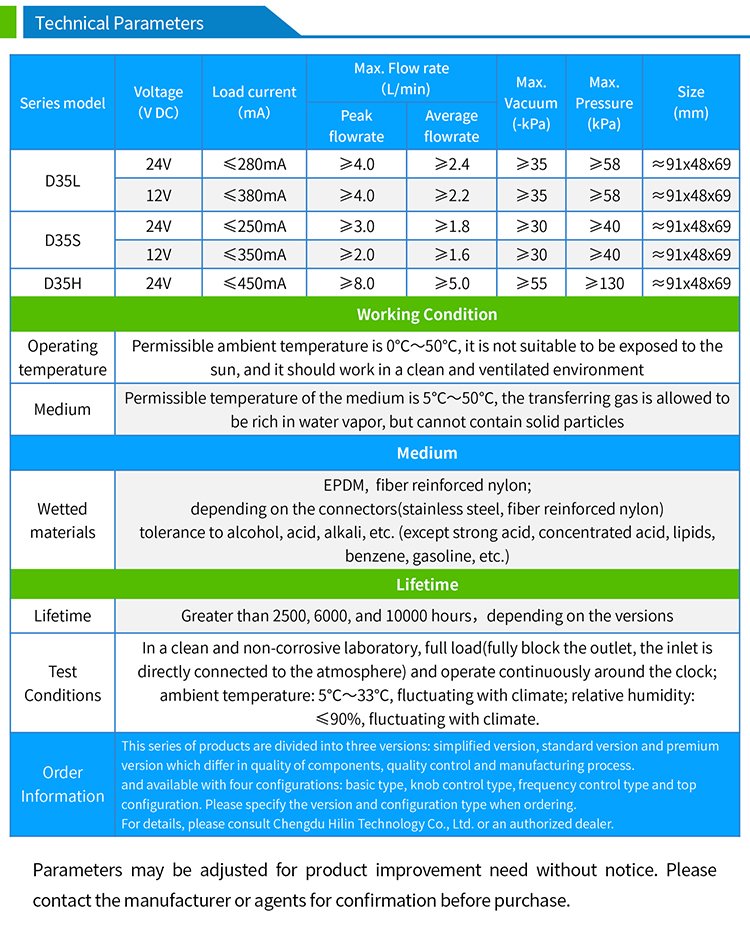

■No-load average flow: 1.6L/min~2.4L/min
■Relative vacuum: -30kPa~-35kPa
■Output pressure: 40kpa~58kPa
■Overall life: Quality
.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
freq.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D35 Frequency Speed Control Vacuum Pump& Compressor Datasheet
