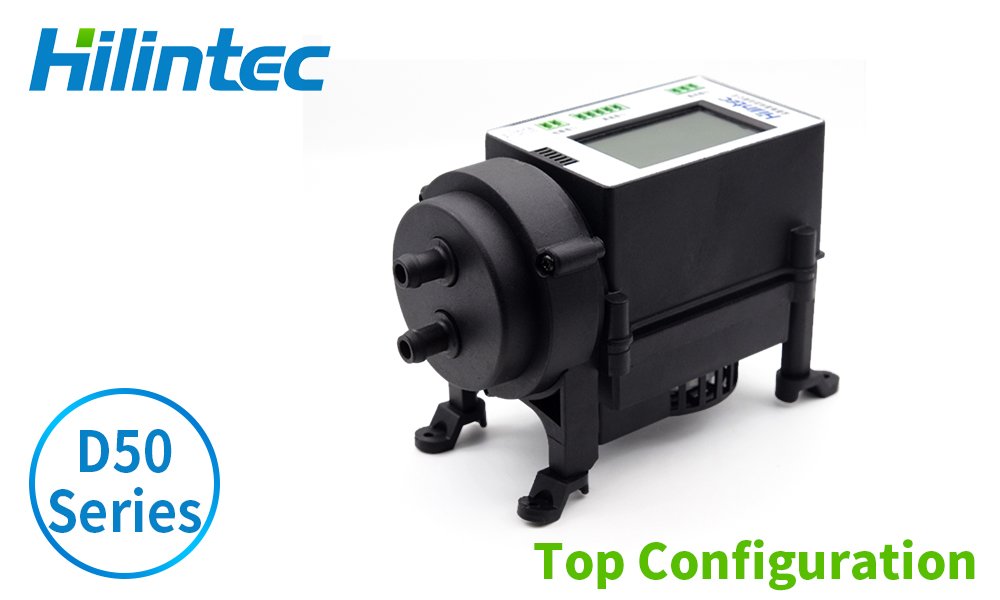

D50 Series Top Configuration Diaphragm Vacuum Pump & Compres

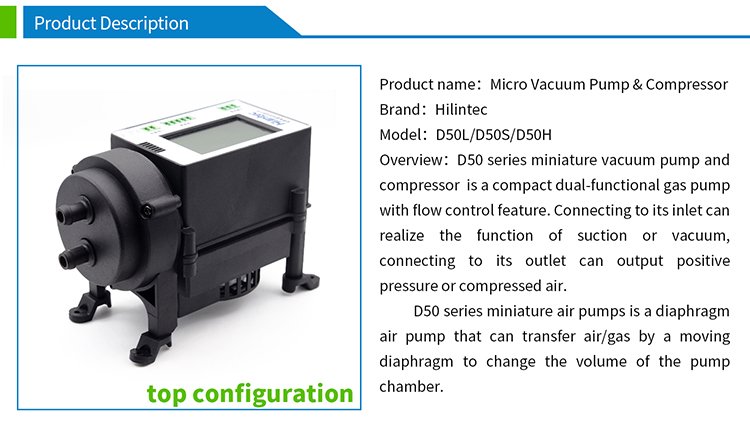

The D50 series miniature air pump is a compact diaphragm vacuum pump with integrated speed and flow control function. Connecting its suction port can realize the function of pumping or vacuuming, and connecting its exhaust port can realize the function of blowing or pumping.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, lab equipment, etc.

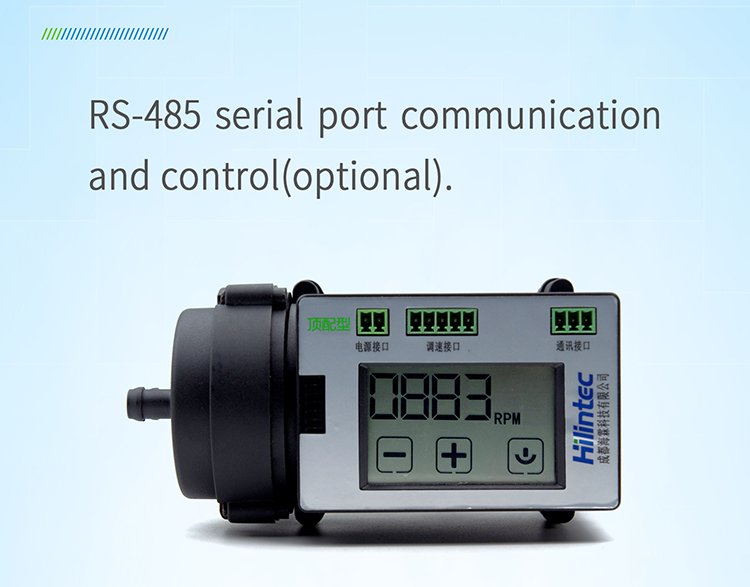

It is especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in discharging gas. The pump is equipped with LCD display, touch control, remote control interface and RS-485 communication interface, with high reliability and a peak flow of 15L/min.
The main application areas include: gas analysis, environmental protection testing, laser equipment, biochemical medicine, lab equipment, etc.
It is especially suitable for scenarios where installation space is not large, large flow is required, and there is resistance in discharging gas. The pump is equipped with LCD display, touch control, remote control interface and RS-485 communication interface, with high reliability and a peak flow of 15L/min.

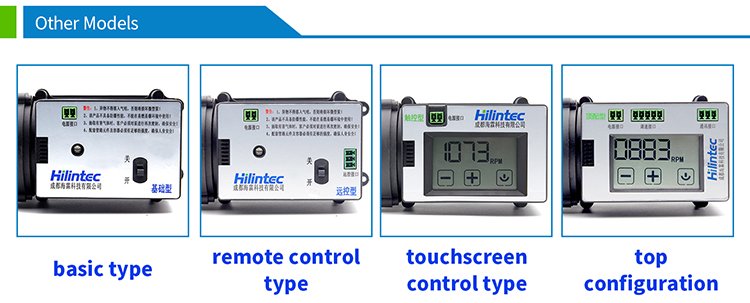

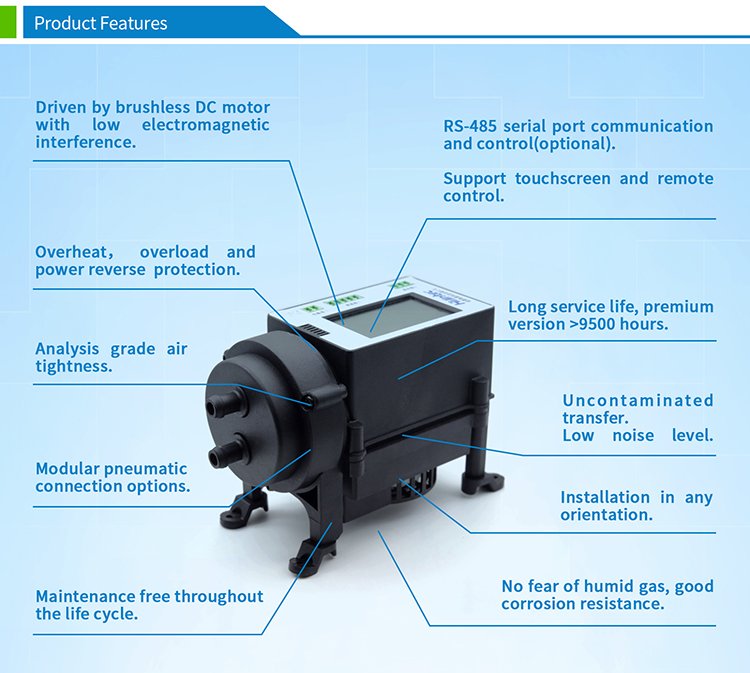

■Equipped with touch LCD screen, speed control signal port

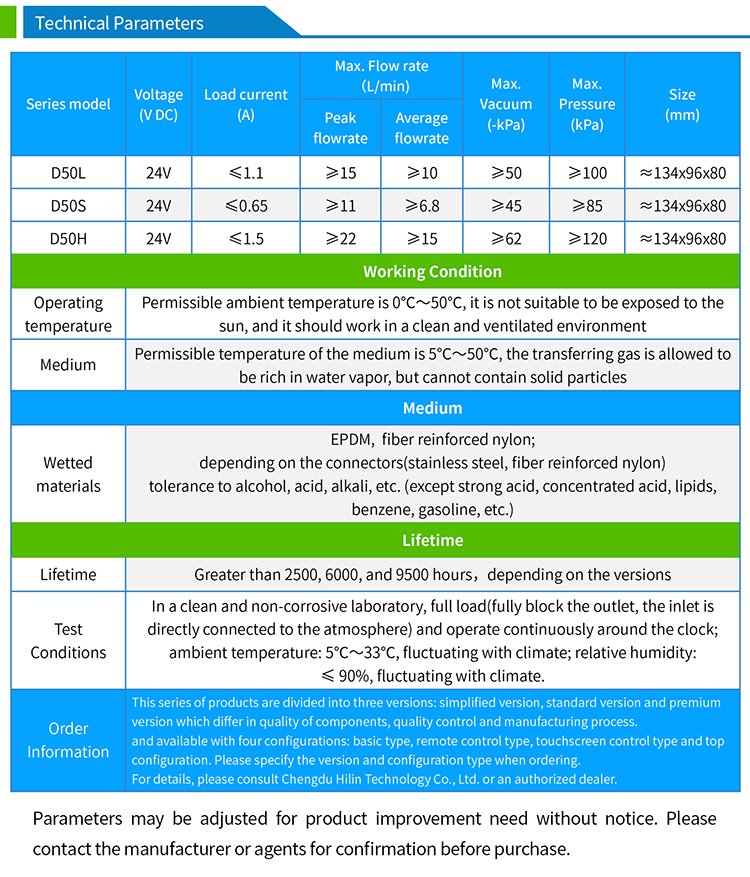

■No-load average flow: 6.8/min~15L/min
■Maximum output pressure: 85kPa~120kPa
■Relative vacuum: -45kPa~-62kPa
■Overall life: premium version>9500hrs
■
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Download D50 Series Top Configuration Diaphragm Vacuum Pump & Compres Datasheet
