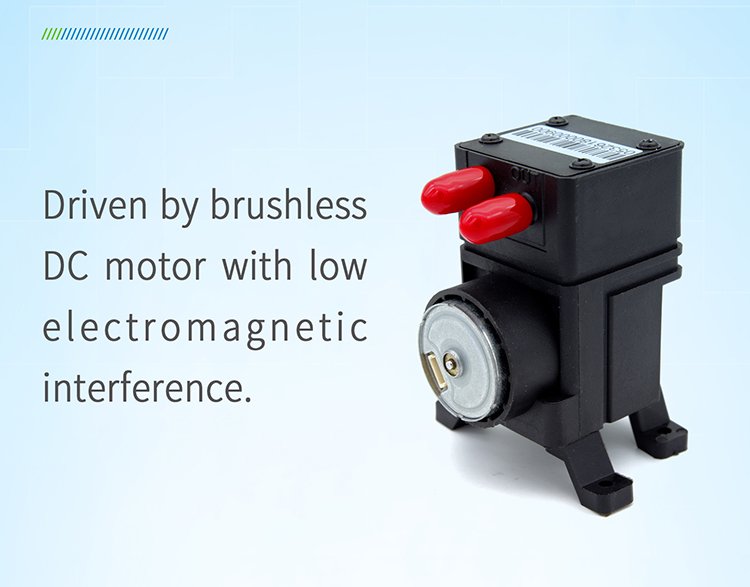

S23 Series Brushless Motor Miniature Vacuum Liquid Pump

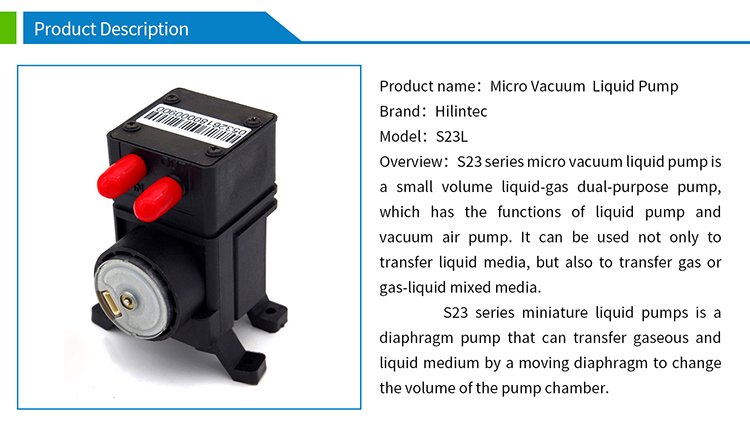

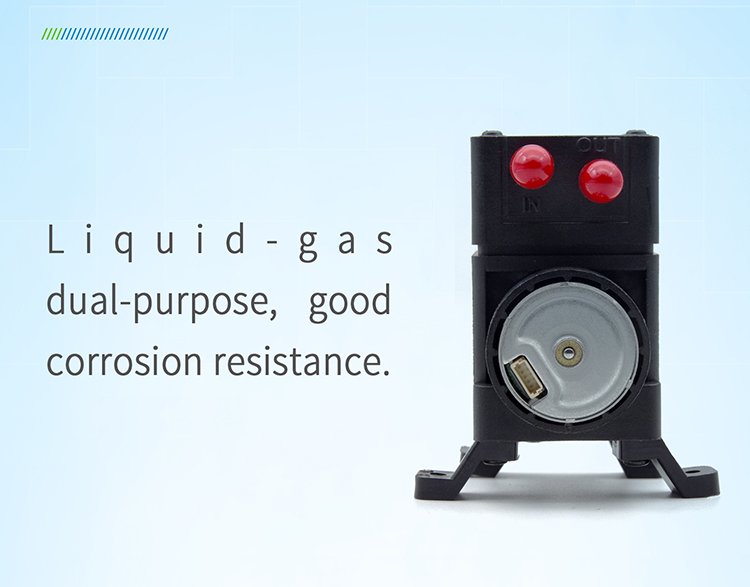

The S23 series is a small volume liquid and gas dual-purpose pump, also known as a micro vacuum pump, which has the functions of a liquid pump and a micro vacuum pump. It can be used to transport liquids and liquid-gas mixed media. It can be running dry and self-priming and does not pollute the conveyed medium.

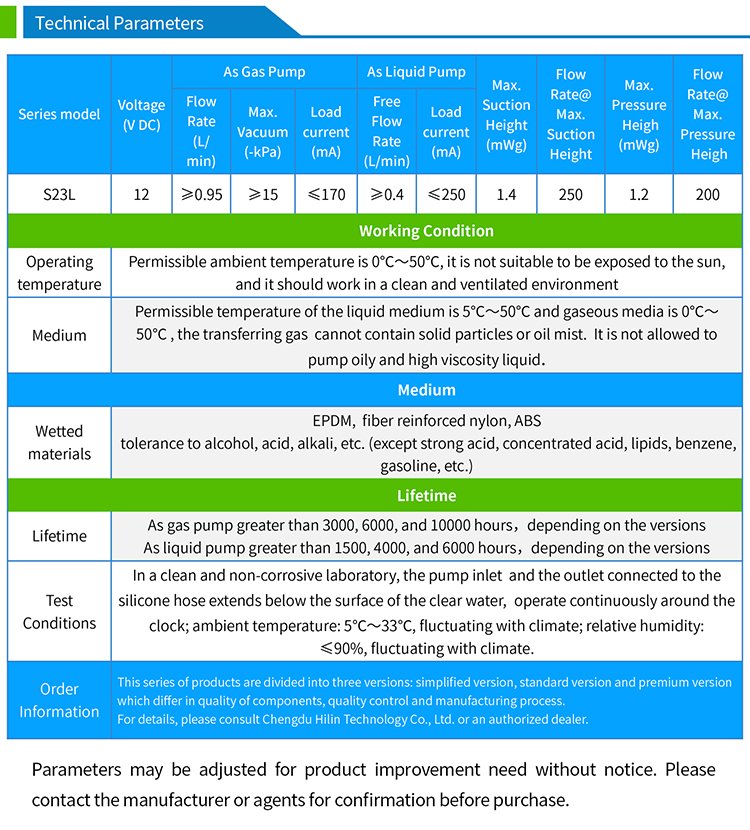

The flow rate of this type of miniature pump is 0.4L/min when transmitting liquid, and 0.95L/min when transmitting gas

■Equipped with speed control signal port
■No-load pure water flow: 400mL/min
■No-load gas flow: 0.95L/min
■Relative vacuum: -15kPa

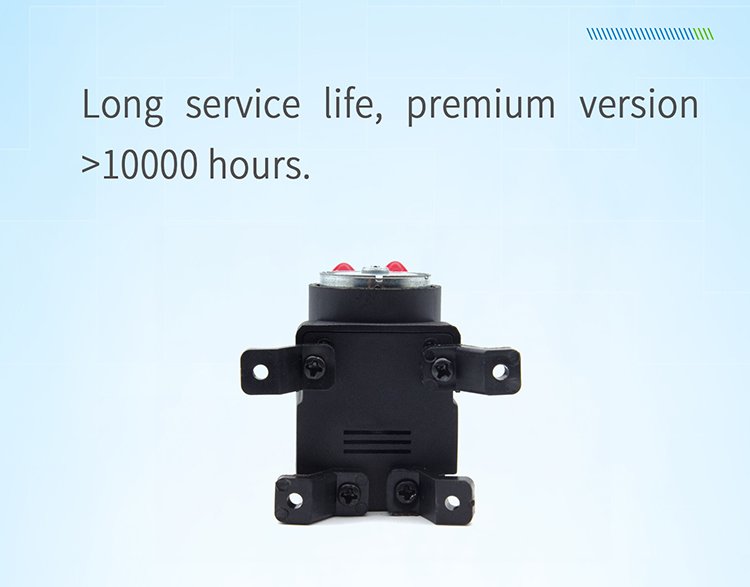

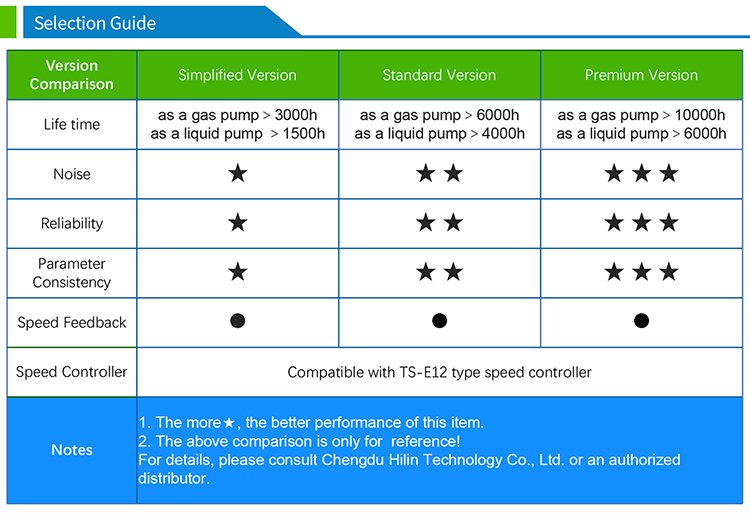

■Overall life: premium version>10000hrs (air pumping) 6000hrs (water pumping
